Butt Fusion Elbow

HDPE Butt Fusion 90 Degree Elbow - DN20 to DN900

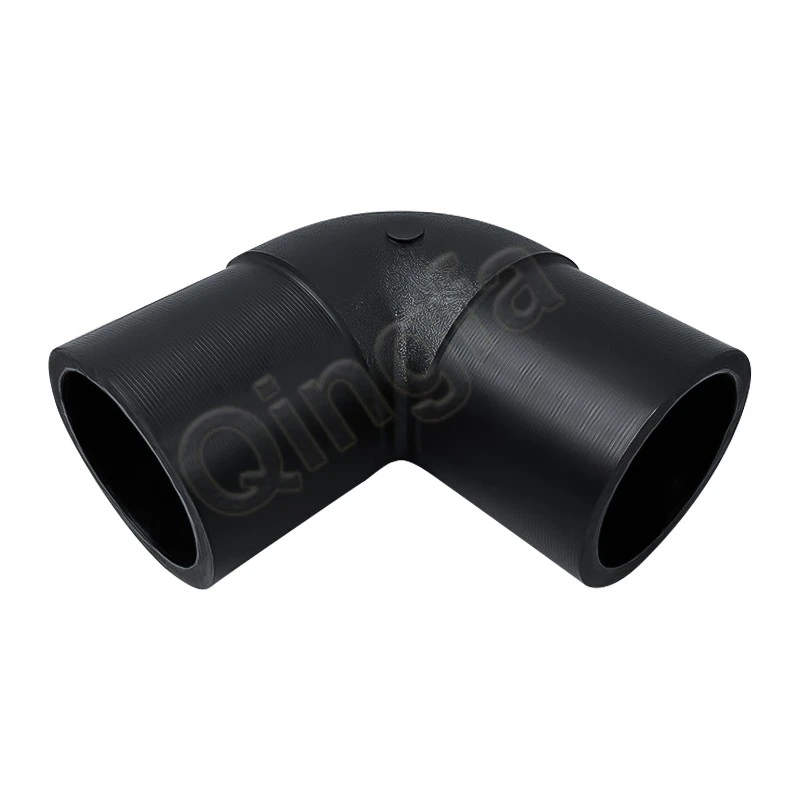

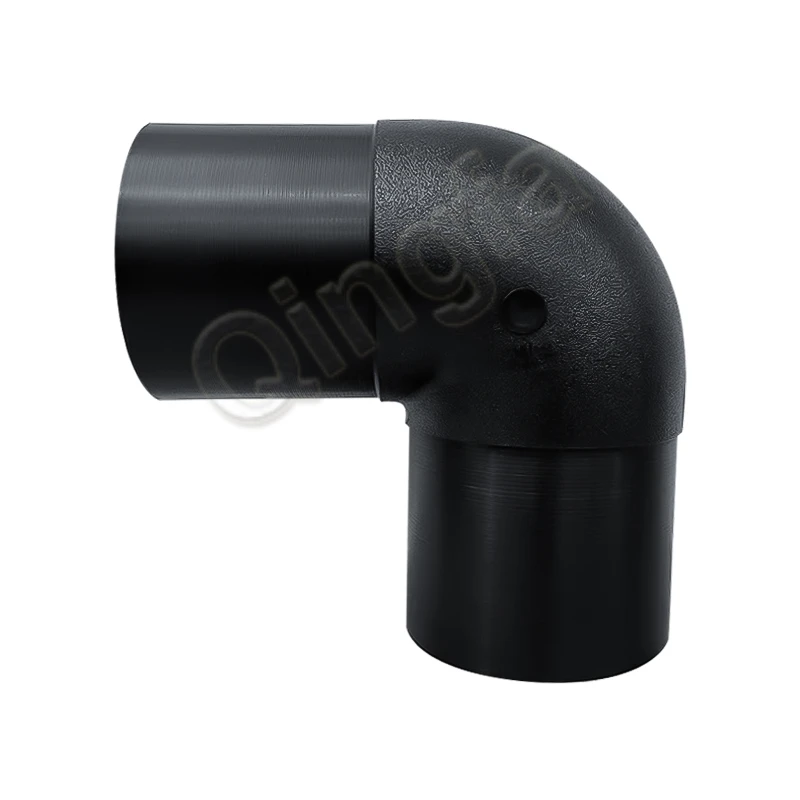

The HDPE hot-melt 90 degree elbow is injection moulded from new PE100 high-density polyethylene and joined to HDPE pipe by hot-melt (butt fusion) bonding. It is designed specifically for right-angle changes of direction, and because the pipe and fitting fuse into a single homogeneous piece the joint is stronger than the pipe wall itself, with no gasket to age and no mechanical fitting to loosen.

Core Parameters

• Material: new HDPE PE100 compound
• Size range: DN20 - DN900 mm
• Pressure rating: PN10 / PN16, in SDR11 / SDR17 / SDR21 wall series
• Connection: butt fusion welding
• Standards: ISO 4427, GB/T 13663.3, EN 12201
• Colour: black as standard, with blue or yellow available to order
• Certification: ISO 9001:2015, CE and SGS

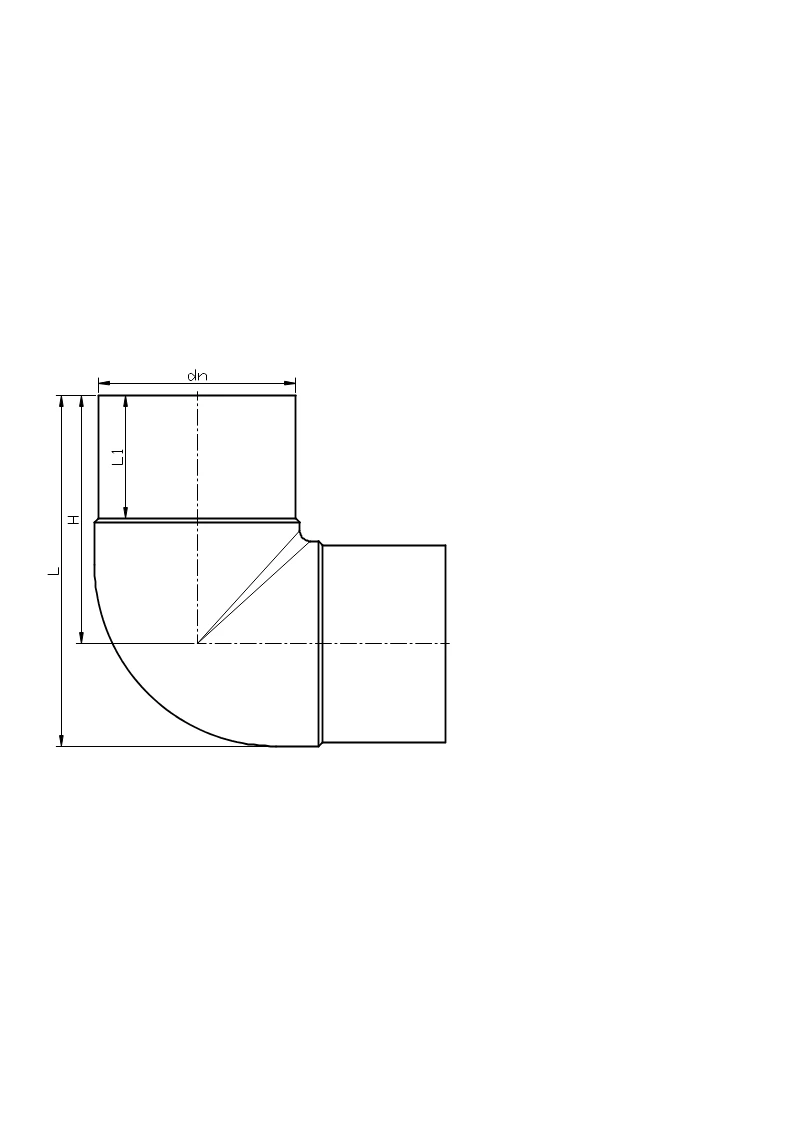

90 Degree Elbow Dimension Drawing

Key Features

• Integrated moulding - injection moulding gives a uniform structure with no internal stress and stable strength across the fitting.
• Corrosion and weather resistance - unaffected by acids, alkalis and salts, and resistant to ageing, with an outdoor service life exceeding 50 years.
• Zero-leakage sealing - the hot-melt connection forms a homogeneous, seamless joint, which removes the leakage risk of threaded and flanged connections.
• Smooth flow, low resistance - the smooth bore keeps head loss low and is not prone to scaling.
• Lightweight and quick to install - about one eighth the weight of a steel elbow, so no anti-corrosion treatment, no heavy lifting and a shorter construction programme.

Applications

Municipal water supply and drainage, urban gas pipeline networks, corrosive chemical fluids, farmland irrigation, mining, marine aquaculture and trenchless engineering.

About Us

Zhejiang Qingfa Pipe Technology Co., Ltd. has worked in the PE gas and water pipe fitting industry for more than 25 years. The company builds a complete product system across the full DN20 to DN1600 range, with over 3,000 product varieties that include electrofusion fittings, butt fusion fittings and ball valves, and provides one-stop fitting solutions for water and gas projects.

Butt Fusion 90° Elbow Wall Series Coverage

This is the mid-range 90° elbow, moulded from dn75 to dn400 - the band where a distribution main is large enough to need a machine-welded bend but has not yet reached the diameter where the fitting is made to order. The table below prints the two wall series we mould at each size, because the same nominal diameter is not always available in both.

From dn90 the elbow is moulded in both SDR11 and SDR17; only the smallest size in the range, dn75, is limited to SDR11. That matters on a line that steps down in pressure class at a valve or a reducer: the bend on the upstream side is ordered in SDR11 and the one downstream in SDR17, and no adapter is needed between them. The outside diameter is identical in both series, so a bend ordered in the wrong series will still slide onto the pipes - it will just leave a step at the fusion face. Confirm the series against the pipe schedule before the order goes in. The fusion weld fittings elbow page covers the wider range, and the full schedule carries every family.
