HDPE Pipe Fittings Specifications

Full size and SDR matrix for every fitting we can produce directly from our own moulds - electrofusion, butt fusion and socket fusion in dn20 to dn1600, plus the gas distribution series in PE100 SDR11 and SDR17 from dn20 to dn630. Expand a product to see its complete size range, pressure series and reference drawing. All dimensions in mm.

I. Directly Moldable Electrofusion Fittings

Electrofusion Straight Couplingdn20–dn1400 · 32 sizes

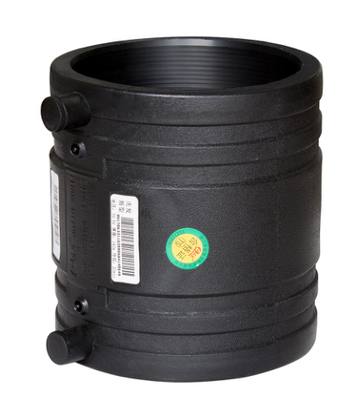

Electrofusion Straight Coupling - product photo — Product photo

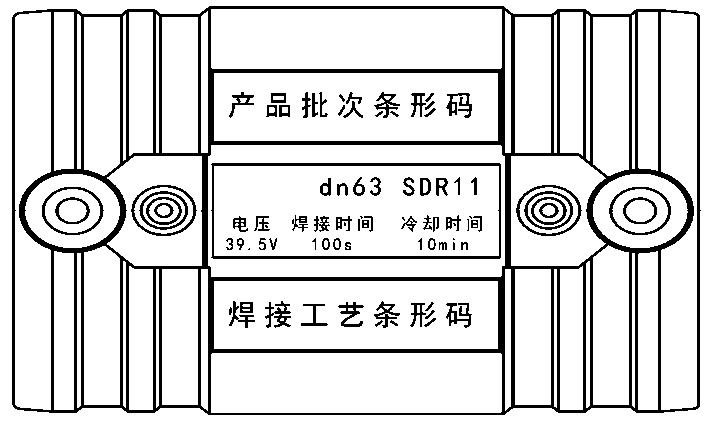

Electrofusion Straight Coupling - technical drawing — Technical drawing

Electrofusion Straight Coupling - dn20–dn1400 · 32 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11/9	dn110	17/11/9	dn280	17/11/9	dn710	11/17
dn25	11/9	dn125	11/9	dn315	17/11/9	dn800	11/17
dn32	11/9	dn140	11/9	dn355	11/17	dn900	11
dn40	11/9	dn160	17/11/9	dn400	11/17	dn1000	11
dn50	11/9	dn180	11/9	dn450	11/17	dn900	17
dn63	11/9	dn200	17/11/9	dn500	11/17	dn1000	17
dn75	11/9	dn225	17/11/9	dn560	11/17	dn1200	11/17
dn90	11/9	dn250	17/11/9	dn630	11/17	dn1400	11/17

* Machined from the next larger size of butt-fusion fitting.

Electrofusion 90° Elbowdn25–dn900 · 27 sizes

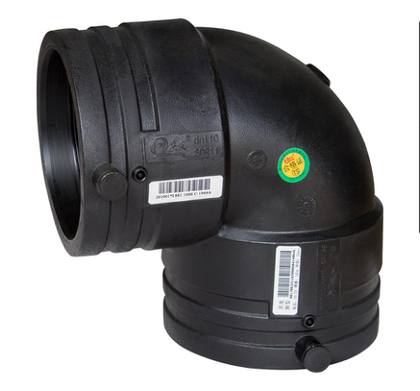

Electrofusion 90° Elbow - product photo — Product photo

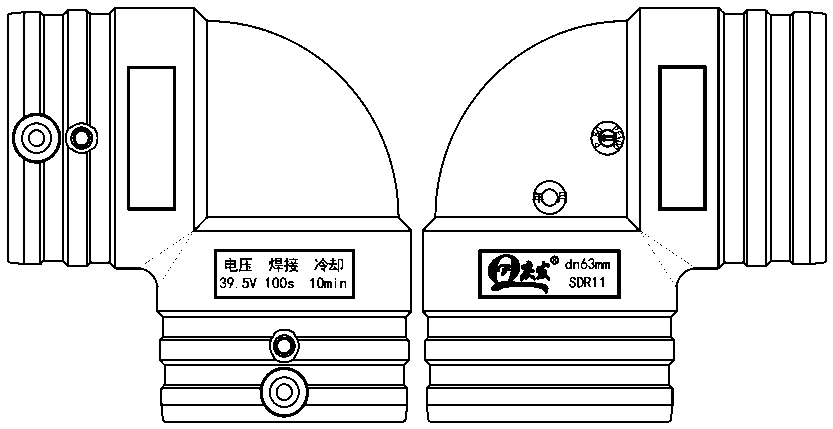

Electrofusion 90° Elbow - technical drawing — Technical drawing

Electrofusion 90° Elbow - dn25–dn900 · 27 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn25	11/9	dn110	17/11/9	dn250	17/11/9	dn630	11
dn32	11/9	dn125	11/9	dn280	11	dn560^*	17
dn40	11/9	dn140	11	dn315	17/11/9	dn630	17
dn50	11/9	dn160	17/11/9	dn355	11	dn710^*	17
dn63	11/9	dn180	11	dn400	11	dn800^*	17
dn75	11/9	dn200	17/11/9	dn450	11	dn900^*	17
dn90	11/9	dn225	17/11	dn500	11

* Machined from the next larger size of butt-fusion fitting.

Electrofusion 45° Elbowdn25–dn900 · 26 sizes

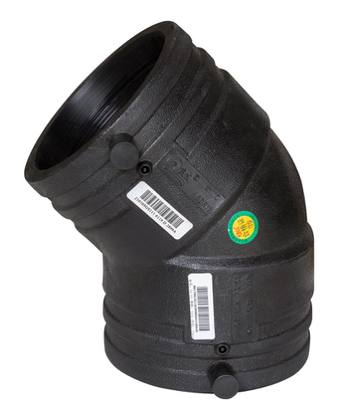

Electrofusion 45° Elbow - product photo — Product photo

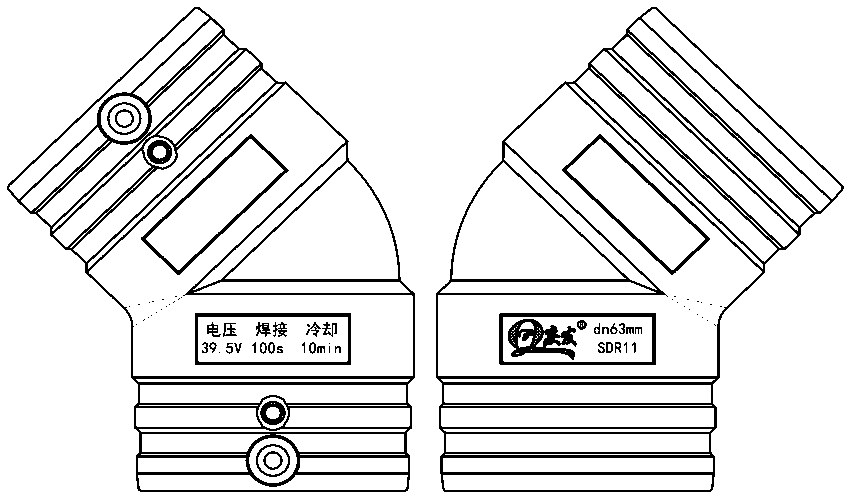

Electrofusion 45° Elbow - technical drawing — Technical drawing

Electrofusion 45° Elbow - dn25–dn900 · 26 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn25	11/9	dn110	17/11/9	dn250	17/11/9	dn630	11
dn32	11/9	dn125	11	dn280	11	dn560^*	17
dn40	11/9	dn140	11	dn315	17/11/9	dn710^*	17
dn50	11/9	dn160	17/11/9	dn355	11	dn800^*	17
dn63	11/9	dn180	11	dn400	11	dn900^*	17
dn75	11/9	dn200	17/11/9	dn450	11
dn90	11/9	dn225	17/11	dn500	11

* Machined from the next larger size of butt-fusion fitting.

Electrofusion Reducing Couplingdn32–dn450 · 45 sizes

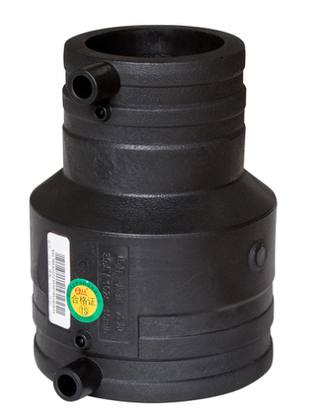

Electrofusion Reducing Coupling - product photo — Product photo

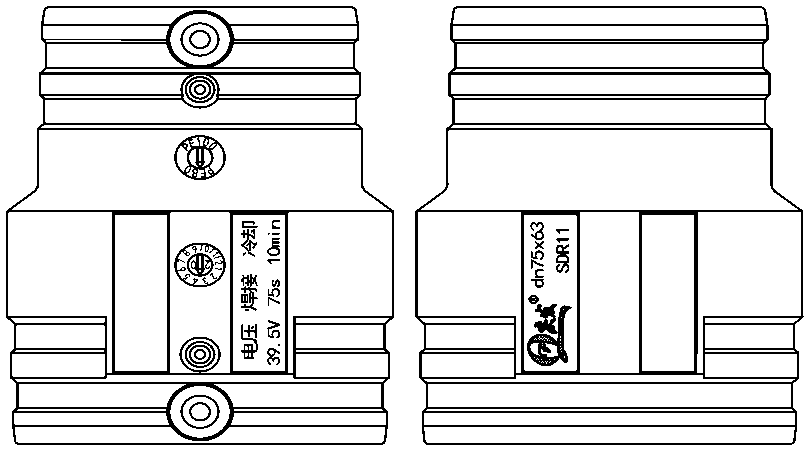

Electrofusion Reducing Coupling - technical drawing — Technical drawing

Electrofusion Reducing Coupling - dn32–dn450 · 45 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn32 × 25	11/9	dn75 × 63	11/9	dn160 × 125	11	dn315 × 110	11
dn40 × 25	11/9	dn90 × 50	11	dn200 × 90	11/9	dn315 × 160	11
dn40 × 32	11/9	dn90 × 63	11/9	dn200 × 110	11/9	dn315 × 200	11/9
dn50 × 25	11/9	dn90 × 75	11/9	dn200 × 160	11/9	dn315 × 225	11
dn50 × 32	11/9	dn110 × 50	11/9	dn225 × 110	11	dn315 × 250	11/9
dn50 × 40	11/9	dn110 × 63	11/9	dn225 × 160	11	dn355 × 250	11^#
dn63 × 25	11	dn110 × 75	11/9	dn225 × 200	11	dn355 × 315	11^#
dn63 × 32	11/9	dn110 × 90	11/9	dn250 × 110	11	dn400 × 250	11
dn63 × 40	11/9	dn125 × 110	11/9	dn250 × 160	11/9	dn400 × 315	11
dn63 × 50	11/9	dn160 × 90	11/9	dn250 × 200	11/9	dn450 × 315	11
dn75 × 40	11/9	dn160 × 110	11/9	dn250 × 225	11	dn450 × 400	11
dn75 × 50	11/9

# New size under development.

Electrofusion Equal Teedn25–dn630 · 25 sizes

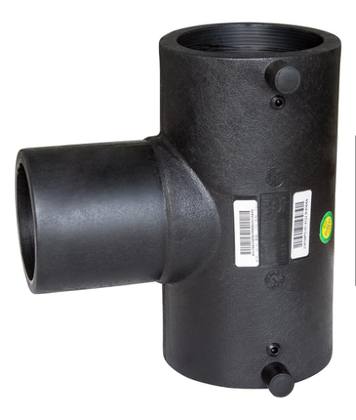

Electrofusion Equal Tee - product photo — Product photo

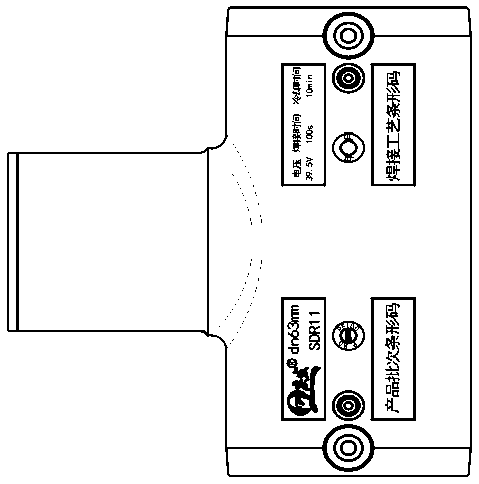

Electrofusion Equal Tee - technical drawing — Technical drawing

Electrofusion Equal Tee - dn25–dn630 · 25 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn25	11/9	dn110	17/11/9	dn250	17/11/9	dn630	11
dn32	11/9	dn125	11/9	dn280	11^#	dn450	17
dn40	11/9	dn140	11^#	dn315	17/11/9	dn500	17
dn50	11/9	dn160	17/11/9	dn355	11/17	dn630	17
dn63	11/9	dn180	11^#	dn400	11
dn75	11/9	dn200	17/11/9	dn450	11
dn90	11/9	dn225	17/11	dn500	11

# New size under development.

Electrofusion Reducing Teedn25–dn630 · 79 sizes

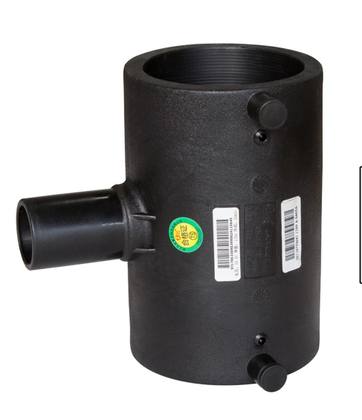

Electrofusion Reducing Tee - product photo — Product photo

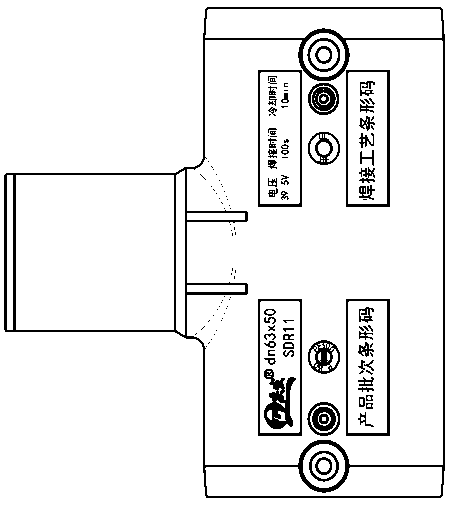

Electrofusion Reducing Tee - technical drawing — Technical drawing

Electrofusion Reducing Tee - dn25–dn630 · 79 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn25 × 20	11	dn90 × 63	11/9	dn200 × 90	11/9	dn400 × 315	11
dn32 × 20	11	dn90 × 75	11/9	dn200 × 110	11/9	dn450 × 160	11
dn32 × 25	11	dn110 × 32	11/9	dn200 × 160	11/9	dn450 × 250	11
dn40 × 20	11	dn110 × 40	11/9	dn225 × 110	11	dn450 × 315	11
dn40 × 25	11	dn110 × 50	11/9	dn225 × 160	11	dn500 × 200	11
dn40 × 32	11/9	dn110 × 63	11/9	dn225 × 200	11	dn500 × 315	11
dn50 × 25	11/9	dn110 × 75	11/9	dn250 × 90	11/9	dn500 × 400	11
dn50 × 32	11/9	dn110 × 90	11/9	dn250 × 110	11/9	dn630 × 315	11
dn50 × 40	11/9	dn125 × 90	11	dn250 × 160	11/9	dn630 × 400	11
dn63 × 25	11/9	dn125 × 110	11	dn250 × 200	11/9	dn630 × 500	11
dn63 × 32	11/9	dn140 × 63	11^#	dn280 × 160	11^#	dn450 × 250	17
dn63 × 40	11/9	dn140 × 110	11^#	dn315 × 110	11/9	dn450 × 315	17
dn63 × 50	11/9	dn160 × 50	11	dn315 × 160	11/9	dn450 × 400	17
dn75 × 32	11/9	dn160 × 63	11/9	dn315 × 200	11/9	dn500 × 315	17
dn75 × 40	11/9	dn160 × 75	11/9	dn315 × 250	11/9	dn500 × 400	17
dn75 × 50	11/9	dn160 × 90	11/9	dn355 × 200	11	dn500 × 450	17
dn75 × 63	11/9	dn160 × 110	11/9	dn355 × 250	11	dn630 × 400	17
dn90 × 32	11/9	dn180 × 110	11^#	dn355 × 315	11	dn630 × 450	17
dn90 × 40	11/9	dn200 × 63	11/9	dn400 × 200	11	dn630 × 500	17
dn90 × 50	11/9	dn200 × 75	11/9	dn400 × 250	11

# New size under development.

Electrofusion Flange Adapterdn50–dn800 · 19 sizes

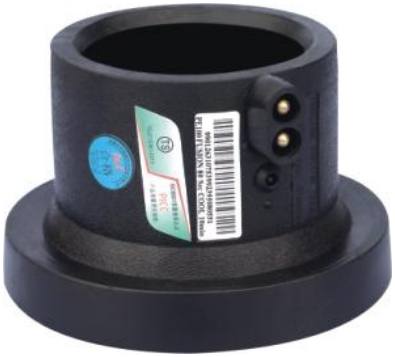

Electrofusion Flange Adapter - product photo — Product photo

Electrofusion Flange Adapter - dn50–dn800 · 19 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn50	11/9	dn125	11	dn315	11/17	dn560	11/17
dn63	11/9	dn160	11/9	dn355	11/17	dn630	17
dn75	11/9	dn200	17/11/9	dn400	11/17	dn710	17
dn90	11/9	dn225	17/11	dn450	11/17	dn800	17
dn110	11/9	dn250	17/11/9	dn500	11/17

Electrofusion End Capdn40–dn315 · 11 sizes

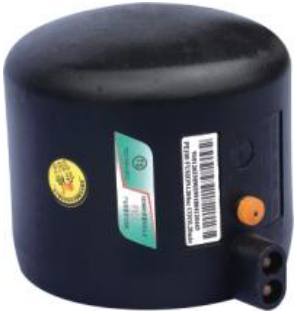

Electrofusion End Cap - product photo — Product photo

Electrofusion End Cap - dn40–dn315 · 11 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn40	11	dn75	11	dn160	11	dn250	11
dn50	11	dn90	11	dn200	11	dn315	11
dn63	11	dn110	11	dn225	11

Electrofusion Flange Steel Ringdn50–dn800 · 18 sizes

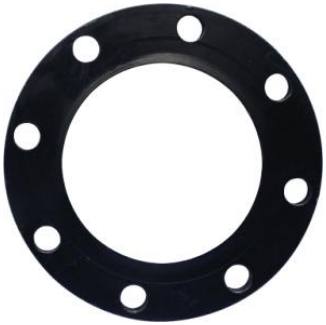

Electrofusion Flange Steel Ring - product photo — Product photo

Electrofusion Flange Steel Ring - dn50–dn800 · 18 sizes
Size	PN Rating	Size	PN Rating	Size	PN Rating	Size	PN Rating	Size	PN Rating
dn50	16/20	dn110	16/20	dn250	10/16/20	dn450	10	dn710	10
dn63	16/20	dn125	16	dn315	10/16	dn500	10/16	dn800	10
dn75	16/20	dn160	16/20	dn355	10/16	dn560	10/16
dn90	16/20	dn200	10/16/20	dn400	10/16	dn630	10

Electrofusion Saddle Bypass (Old Model)dn63–dn315 · 10 sizes

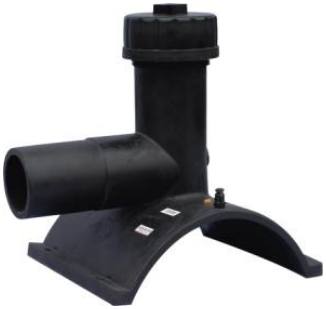

Electrofusion Saddle Bypass (Old Model) - product photo — Product photo

Electrofusion Saddle Bypass (Old Model) - dn63–dn315 · 10 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn63 × 32	11	dn125 × 63	11	dn250 × 90	11	dn315 × 110	11
dn90 × 63	11	dn160 × 63	11	dn250 × 110	11
dn110 × 63	11	dn200 × 90	11	dn315 × 90	11

Electrofusion Saddle Bypass (New Model)dn63–dn225 · 16 sizes

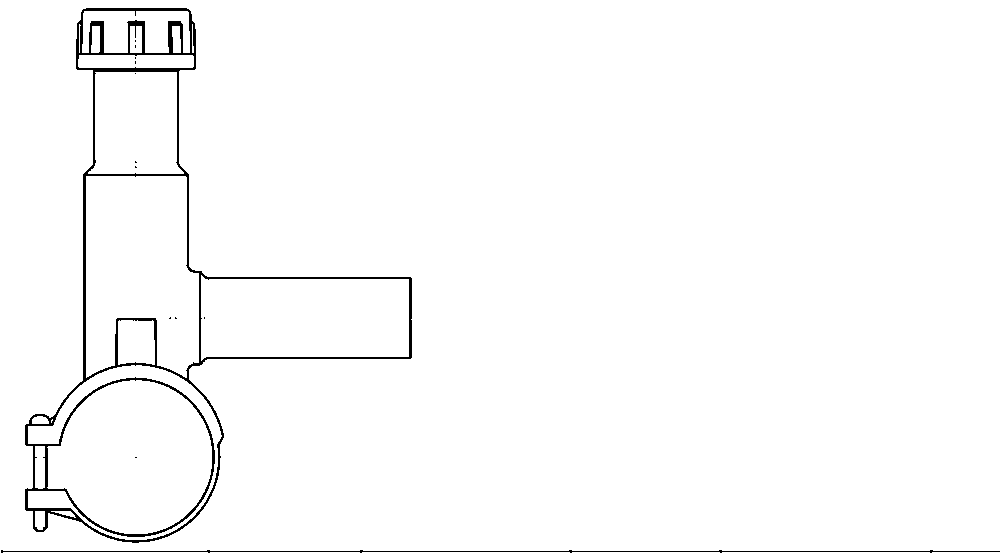

Electrofusion Saddle Bypass (New Model) - technical drawing — Technical drawing

Electrofusion Saddle Bypass (New Model) - dn63–dn225 · 16 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn63 × 20	11	dn90 × 25	11	dn110 × 25	11	dn160 × 63	11
dn63 × 25	11	dn90 × 32	11	dn110 × 32	11	dn180 × 32	11
dn63 × 32	11	dn90 × 63	11	dn110 × 63	11	dn200 × 63	11
dn90 × 20	11	dn110 × 20	11	dn125 × 32	11	dn225 × 63	11

Electrofusion Saddle Clamp (Old Model)dn63–dn315 · 9 sizes

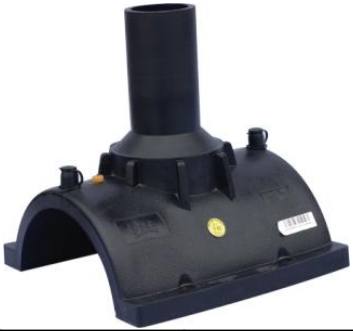

Electrofusion Saddle Clamp (Old Model) - product photo — Product photo

Electrofusion Saddle Clamp (Old Model) - dn63–dn315 · 9 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn63 × 32	11	dn160 × 63	11	dn250 × 90	11	dn315 × 90	11
dn90 × 63	11	dn200 × 90	11	dn250 × 110	11	dn315 × 110	11
dn110 × 63	11

Electrofusion Saddle Clamp (New Model)dn63–dn225 · 9 sizes

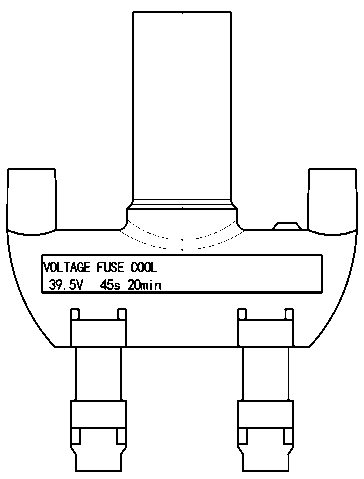

Electrofusion Saddle Clamp (New Model) - technical drawing — Technical drawing

Electrofusion Saddle Clamp (New Model) - dn63–dn225 · 9 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn63 × 20	11	dn90 × 32	11	dn160 × 63	11
dn63 × 25	11	dn90 × 63	11	dn200 × 63	11
dn63 × 32	11	dn110 × 63	11	dn225 × 63	11

Electrofusion Saddle End Plugdn63–dn315 · 7 sizes

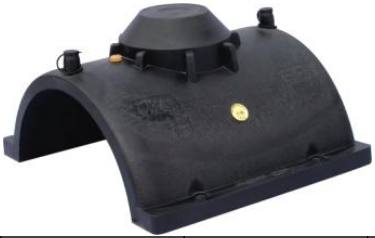

Electrofusion Saddle End Plug - product photo — Product photo

Electrofusion Saddle End Plug - dn63–dn315 · 7 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn63	11	dn110	11	dn200	11	dn315	11
dn90	11	dn160	11	dn250	11

II. Directly Moldable Butt Fusion Fittings

Butt Fusion Reducerdn50–dn630 · 78 sizes

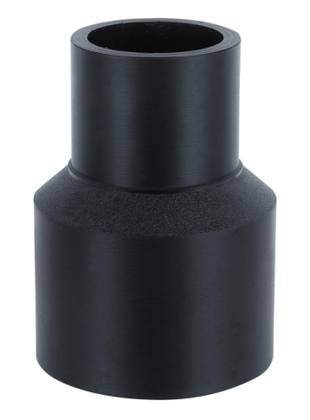

Butt Fusion Reducer - product photo — Product photo

Butt Fusion Reducer - dn50–dn630 · 78 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn50 × 20	11	dn110 × 63	11	dn200 × 125	11	dn315 × 225	11
dn50 × 25	11	dn110 × 75	11	dn200 × 160	11	dn315 × 250	11
dn50 × 32	11	dn110 × 90	11	dn200 × 180	11	dn315 × 280	11
dn50 × 40	11	dn125 × 63	11	dn225 × 110	11	dn355 × 250	11/17
dn63 × 20	11	dn125 × 75	11	dn225 × 125	11	dn355 × 315	11/17
dn63 × 25	11	dn125 × 90	11	dn225 × 160	11	dn400 × 160	11/17
dn63 × 32	11	dn125 × 110	11	dn225 × 200	11	dn400 × 200	11/17
dn63 × 40	11	dn140 × 110	11	dn250 × 90	11	dn400 × 250	11/17
dn63 × 50	11	dn160 × 50	11	dn250 × 110	11	dn400 × 315	11/17
dn75 × 32	11	dn160 × 63	11	dn250 × 125	11	dn400 × 355	11/17
dn75 × 40	11	dn160 × 75	11	dn250 × 160	11	dn450 × 250	11/17
dn75 × 50	11	dn160 × 90	11	dn250 × 200	11	dn450 × 315	11/17
dn75 × 63	11	dn160 × 110	11	dn250 × 225	11	dn450 × 400	11/17
dn90 × 32	11	dn160 × 125	11	dn280 × 200	11/17	dn500 × 315	11/17
dn90 × 40	11	dn160 × 140	11	dn280 × 250	11/17	dn500 × 400	11/17
dn90 × 50	11	dn180 × 160	11	dn315 × 90	11/17	dn500 × 450	11/17
dn90 × 63	11	dn200 × 63	11	dn315 × 110	11/17	dn630 × 400	11/17
dn90 × 75	11	dn200 × 75	11	dn315 × 160	11	dn630 × 450	11/17
dn110 × 40	11	dn200 × 90	11	dn315 × 200	11	dn630 × 500	11/17
dn110 × 50	11	dn200 × 110	11

Sizes dn90 and above in SDR17 are produced by machining.

Butt Fusion 90° Elbowdn20–dn1600 · 31 sizes

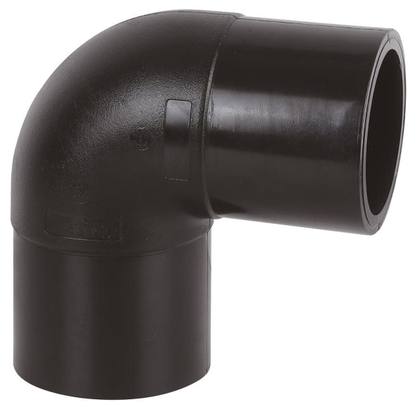

Butt Fusion 90° Elbow - product photo — Product photo

Butt Fusion 90° Elbow - dn20–dn1600 · 31 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11	dn110	11/17	dn280	11/17	dn710	11/17
dn25	11	dn125	11/17	dn315	11/17	dn800	11/17
dn32	11	dn140	11/17	dn355	11/17	dn900	11/17
dn40	11	dn160	11/17	dn400	11/17	dn1000	17
dn50	11	dn180	11/17	dn450	11/17	dn1200^#	11/17
dn63	11	dn200	11/17	dn500	11/17	dn1400^#	17
dn75	11	dn225	11/17	dn560	11/17	dn1600^#	17
dn90	11/17	dn250	11/17	dn630	11/17

SDR17 in dn450–dn630 is available in both long and short patterns. # New size under development.

Butt Fusion 45° Elbowdn50–dn1600 · 27 sizes

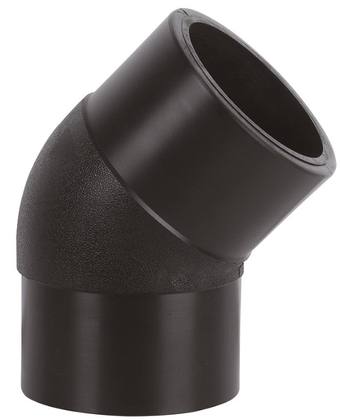

Butt Fusion 45° Elbow - product photo — Product photo

Butt Fusion 45° Elbow - dn50–dn1600 · 27 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn50	11	dn160	11/17	dn355	11/17	dn800	11/17
dn63	11	dn180	11	dn400	11/17	dn900	11/17
dn75	11	dn200	11/17	dn450	11/17	dn1000	17
dn90	11/17	dn225	11/17	dn500	11/17	dn1200^#	11/17
dn110	11/17	dn250	11/17	dn560	11/17	dn1400^#	17
dn125	11/17	dn280	11/17	dn630	11/17	dn1600^#	17
dn140	11	dn315	9/11/17	dn710	11/17

SDR11 and SDR17 in dn450–dn630 are available in both long and short patterns. # New size under development.

Butt Fusion Equal Teedn40–dn1600 · 27 sizes

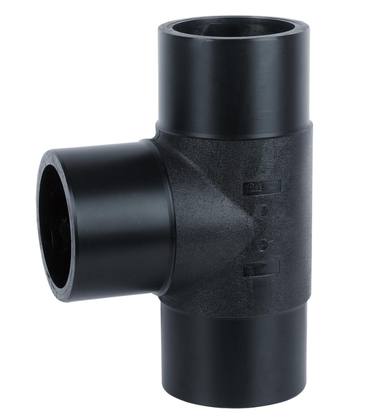

Butt Fusion Equal Tee - product photo — Product photo

Butt Fusion Equal Tee - dn40–dn1600 · 27 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn40	11	dn140	11/17	dn315	9/11/17	dn710	11/17
dn50	11	dn160	11/17	dn355	11/17	dn800	11/17
dn63	11	dn180	11/17	dn400	9/11/17	dn900^#	17
dn75	11	dn200	11/17	dn450	11/17	dn1000	17
dn90	11/17	dn225	11/17	dn500	11/17	dn1200^#	17
dn110	11/17	dn250	11/17	dn560	11/17	dn1600	17
dn125	11/17	dn280	11/17	dn630	11/17

SDR17 in dn450–dn630 is available in both long and short patterns; SDR11 in short pattern only. # New size under development.

Butt Fusion Reducing Teedn50–dn1600 · 102 sizes

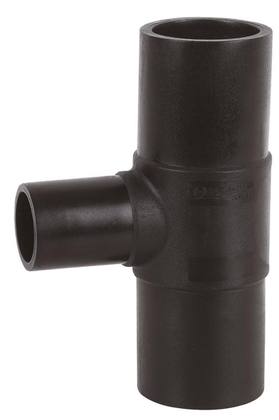

Butt Fusion Reducing Tee - product photo — Product photo

Butt Fusion Reducing Tee - dn50–dn1600 · 102 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn50 × 25	11	dn125 × 110	11/17	dn225 × 110	11/17	dn400 × 315	11/17
dn50 × 32	11	dn140 × 63^#	11/17	dn225 × 160	11/17	dn450 × 250	11/17
dn50 × 40	11	dn140 × 90^#	11/17	dn225 × 200	11/17	dn450 × 315	11/17
dn63 × 25	11	dn140 × 110	11/17	dn250 × 90	11/17	dn450 × 400	11/17
dn63 × 32	11	dn160 × 32	11/17	dn250 × 110	11/17	dn500 × 315	11/17
dn63 × 40	11	dn160 × 40	11/17	dn250 × 125	11/17	dn500 × 400	11/17
dn63 × 50	11	dn160 × 50	11/17	dn250 × 160	11/17	dn500 × 450	11/17
dn75 × 32	11	dn160 × 63	11/17	dn250 × 200	11/17	dn630 × 400	11/17
dn75 × 40	11	dn160 × 75	11/17	dn250 × 225	11/17	dn630 × 450	11/17
dn75 × 50	11	dn160 × 90	11/17	dn280 × 110	11/17	dn630 × 500	11/17
dn75 × 63	11	dn160 × 110	11/17	dn280 × 160	11/17	dn710 × 400	11/17
dn90 × 25	11/17	dn160 × 125	11/17	dn280 × 200	11/17	dn710 × 500	11/17
dn90 × 32	11/17	dn180 × 90	11/17	dn280 × 225	11/17	dn710 × 630	11/17
dn90 × 40	11/17	dn180 × 110	11/17	dn315 × 110	11/17	dn800 × 500	11/17
dn90 × 50	11/17	dn180 × 160	11/17	dn315 × 160	11/17	dn800 × 630	11/17
dn90 × 63	11/17	dn200 × 40	11/17	dn315 × 200	11/17	dn800 × 710	11/17
dn90 × 75	11/17	dn200 × 50	11/17	dn315 × 225	11/17	dn1000 × 500	17
dn110 × 32	11/17	dn200 × 63	11/17	dn315 × 250	11/17	dn1000 × 630	17
dn110 × 40	11/17	dn200 × 75	11/17	dn355 × 160	11/17	dn1000 × 800	17
dn110 × 50	11/17	dn200 × 90	11/17	dn355 × 200	11/17	dn1200 × 630^#	17
dn110 × 63	11/17	dn200 × 110	11/17	dn355 × 250	11/17	dn1200 × 800^#	17
dn110 × 75	11/17	dn200 × 125	11/17	dn355 × 315	11/17	dn1200 × 1000^#	17
dn110 × 90	11/17	dn200 × 160	11/17	dn400 × 110	11/17	dn1600 × 630	17
dn125 × 63	11/17	dn225 × 63	11/17	dn400 × 160	11/17	dn1600 × 1000	17
dn125 × 75	11/17	dn225 × 75	11/17	dn400 × 200	11/17
dn125 × 90	11/17	dn225 × 90	11/17	dn400 × 250	11/17

# New size under development.

Butt Fusion Lateral Tee (45°)dn63–dn160 · 6 sizes

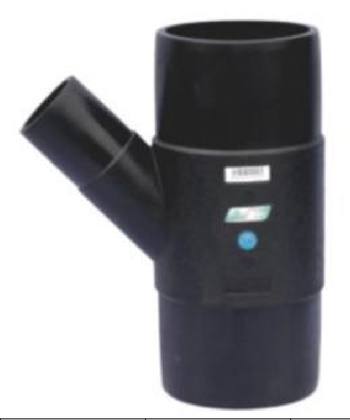

Butt Fusion Lateral Tee (45°) - product photo — Product photo

Butt Fusion Lateral Tee (45°) - dn63–dn160 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn63	11	dn90	11	dn125	11
dn75	11	dn110	11	dn160 × 75	17

Butt Fusion End Capdn20–dn1600 · 31 sizes

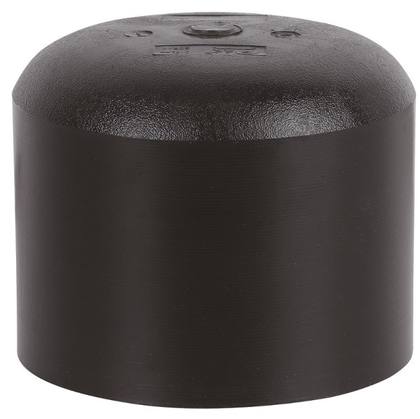

Butt Fusion End Cap - product photo — Product photo

Butt Fusion End Cap - dn20–dn1600 · 31 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11	dn110	11/17	dn280	11/17	dn710	11/17
dn25	11	dn125	11/17	dn315	11/17	dn800	11/17
dn32	11	dn140	11/17	dn355	11/17	dn900	11/17
dn40	11	dn160	11/17	dn400	11/17	dn1000	11/17
dn50	11	dn180	11	dn450	11/17	dn1200	17
dn63	11	dn200	11/17	dn500	11/17	dn1400	17
dn75	11	dn225	11/17	dn560	11/17	dn1600	17
dn90	11/17	dn250	11/17	dn630	11/17

Butt Fusion Flange Adapterdn40–dn1600 · 28 sizes

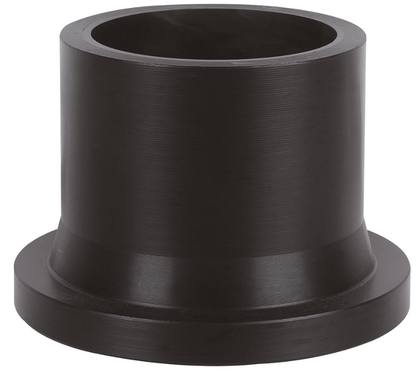

Butt Fusion Flange Adapter - product photo — Product photo

Butt Fusion Flange Adapter - dn40–dn1600 · 28 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series	Size	SDR Series
dn40	11	dn140	11/17	dn315	11/17	dn710	11/17
dn50	11	dn160	11/17	dn355	11/17	dn800	11/17
dn63	11	dn180	11/17	dn400	11/17	dn900	11/17
dn75	11	dn200	11/17	dn450	11/17	dn1000	11/17
dn90	11/17	dn225	11/17	dn500	11/17	dn1200	11/17
dn110	11/17	dn250	11/17	dn560	11/17	dn1400^#	17
dn125	11/17	dn280	11/17	dn630	11/17	dn1600	17

# New size under development.

Butt Fusion Flange Steel Ringdn40–dn1200 · 26 sizes

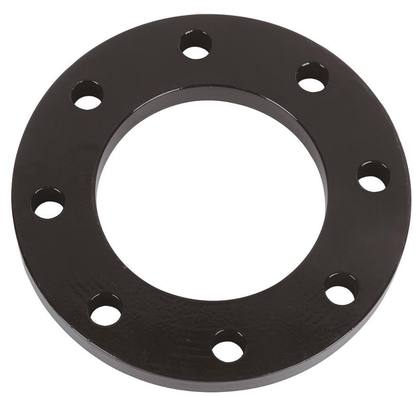

Butt Fusion Flange Steel Ring - product photo — Product photo

Butt Fusion Flange Steel Ring - dn40–dn1200 · 26 sizes
Size	PN Rating	Size	PN Rating	Size	PN Rating	Size	PN Rating
dn40	16	dn140	16	dn315	10/16	dn710	10/16
dn50	16	dn160	16	dn355	10/16	dn800	10/16
dn63	16	dn180	16	dn400	10/16	dn900	10/16
dn75	16	dn200	10/16	dn450	10/16	dn1000	10/16
dn90	16	dn225	10/16	dn500	10/16	dn1200	10/16
dn110	16	dn250	10/16	dn560	10/16
dn125	16	dn280	10/16	dn630	10/16

III. Directly Moldable Socket Fusion Fittings

Socket Fusion Couplingdn20–dn63 · 6 sizes

Socket Fusion Coupling - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11	dn32	11	dn50	11
dn25	11	dn40	11	dn63	11

Socket Fusion Reducing Couplingdn25–dn63 · 15 sizes

Socket Fusion Reducing Coupling - dn25–dn63 · 15 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn25 × 20	11	dn40 × 32	11	dn63 × 20	11
dn32 × 20	11	dn50 × 20	11	dn63 × 25	11
dn32 × 25	11	dn50 × 25	11	dn63 × 32	11
dn40 × 20	11	dn50 × 32	11	dn63 × 40	11
dn40 × 25	11	dn50 × 40	11	dn63 × 50	11

Socket Fusion Teedn20–dn63 · 6 sizes

Socket Fusion Tee - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11	dn32	11	dn50	11
dn25	11	dn40	11	dn63	11

Socket Fusion Reducing Teedn25–dn63 · 15 sizes

Socket Fusion Reducing Tee - dn25–dn63 · 15 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn25 × 20	11	dn40 × 32	11	dn63 × 20	11
dn32 × 20	11	dn50 × 20	11	dn63 × 25	11
dn32 × 25	11	dn50 × 25	11	dn63 × 32	11
dn40 × 20	11	dn50 × 32	11	dn63 × 40	11
dn40 × 25	11	dn50 × 40	11	dn63 × 50	11

Socket Fusion 45° Elbowdn20–dn63 · 6 sizes

Socket Fusion 45° Elbow - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11	dn32	11	dn50	11
dn25	11	dn40	11	dn63	11

Socket Fusion 90° Elbowdn20–dn63 · 6 sizes

Socket Fusion 90° Elbow - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11	dn32	11	dn50	11
dn25	11	dn40	11	dn63	11

Socket Fusion End Capdn20–dn63 · 6 sizes

Socket Fusion End Cap - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20	11	dn32	11	dn50	11
dn25	11	dn40	11	dn63	11

Socket Fusion Female Threaded Couplingdn20–dn63 · 6 sizes

Socket Fusion Female Threaded Coupling - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20 × 1/2″	11	dn32 × 1″	11	dn50 × 1-1/2″	11
dn25 × 3/4″	11	dn40 × 1-1/4″	11	dn63 × 2″	11

Socket Fusion Male Threaded Couplingdn20–dn63 · 6 sizes

Socket Fusion Male Threaded Coupling - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20 × 1/2″	11	dn32 × 1″	11	dn50 × 1-1/2″	11
dn25 × 3/4″	11	dn40 × 1-1/4″	11	dn63 × 2″	11

Socket Fusion Female Threaded 90° Elbowdn20–dn63 · 6 sizes

Socket Fusion Female Threaded 90° Elbow - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20 × 1/2″	11	dn32 × 1″	11	dn50 × 1-1/2″	11
dn25 × 3/4″	11	dn40 × 1-1/4″	11	dn63 × 2″	11

Socket Fusion Male Threaded 90° Elbowdn20–dn63 · 6 sizes

Socket Fusion Male Threaded 90° Elbow - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20 × 1/2″	11	dn32 × 1″	11	dn50 × 1-1/2″	11
dn25 × 3/4″	11	dn40 × 1-1/4″	11	dn63 × 2″	11

Socket Fusion Female Threaded Teedn20–dn63 · 6 sizes

Socket Fusion Female Threaded Tee - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20 × 1/2″	11	dn32 × 1″	11	dn50 × 1-1/2″	11
dn25 × 3/4″	11	dn40 × 1-1/4″	11	dn63 × 2″	11

Socket Fusion Male Threaded Teedn20–dn63 · 6 sizes

Socket Fusion Male Threaded Tee - dn20–dn63 · 6 sizes
Size	SDR Series	Size	SDR Series	Size	SDR Series
dn20 × 1/2″	11	dn32 × 1″	11	dn50 × 1-1/2″	11
dn25 × 3/4″	11	dn40 × 1-1/4″	11	dn63 × 2″	11

Our gas distribution series is moulded in PE100 and supplied in SDR11 and SDR17 for natural gas and LPG networks - electrofusion fittings, butt fusion fittings, PE ball valves and steel-to-PE transition fittings. Sizes run from dn20 up to dn630. No prices are published on these tables; contact our sales team for a quotation.

IV. Gas Distribution Series - Electrofusion Fittings

Electrofusion Straight Couplingdn20–dn400 · 20 sizes

Electrofusion Straight Coupling - dn20–dn400 · 20 sizes
Size	SDR11	SDR17	Size	SDR11	SDR17
dn20	✓	-	dn140	✓	-
dn25	✓	-	dn160	✓	✓
dn32	✓	-	dn180	✓	-
dn40	✓	-	dn200	✓	✓
dn50	✓	-	dn225	✓	✓
dn63	✓	-	dn250	✓	✓
dn75	✓	-	dn280	✓	-
dn90	✓	-	dn315	✓	✓
dn110	✓	✓	dn355	✓	✓
dn125	✓	-	dn400	✓	✓

Electrofusion Reducing Couplingdn32–dn400 · 39 combinations

Electrofusion Reducing Coupling - dn32–dn400 · 39 combinations
Size	SDR11	SDR17	Size	SDR11	SDR17
dn32 × 25	✓	-	dn160 × 110	✓	-
dn40 × 32	✓	-	dn160 × 125	✓	-
dn50 × 25	✓	-	dn200 × 90	✓	-
dn50 × 32	✓	-	dn200 × 110	✓	-
dn50 × 40	✓	-	dn200 × 160	✓	-
dn63 × 32	✓	-	dn225 × 110	✓	-
dn63 × 40	✓	-	dn225 × 160	✓	-
dn63 × 50	✓	-	dn225 × 200	✓	-
dn75 × 40	✓	-	dn250 × 110	✓	-
dn75 × 50	✓	-	dn250 × 160	✓	-
dn75 × 63	✓	-	dn250 × 200	✓	-
dn90 × 50	✓	-	dn250 × 225	✓	-
dn90 × 63	✓	-	dn315 × 110	✓	-
dn90 × 75	✓	-	dn315 × 160	✓	-
dn110 × 50	✓	-	dn315 × 200	✓	-
dn110 × 63	✓	-	dn315 × 225	✓	-
dn110 × 75	✓	-	dn315 × 250	✓	-
dn110 × 90	✓	-	dn400 × 250	✓	-
dn125 × 110	✓	-	dn400 × 315	✓	-
dn160 × 90	✓	-

Electrofusion Saddle Clampdn63–dn400 · 13 combinations

Electrofusion Saddle Clamp - dn63–dn400 · 13 combinations
Size	SDR11	SDR17
dn63 × 32	✓	-
dn90 × 63	✓	-
dn110 × 63	✓	-
dn160 × 63	✓	-
dn200 × 63	✓	-
dn200 × 90	✓	-
dn250 × 63	✓	-
dn250 × 90	✓	-
dn250 × 110	✓	-
dn315 × 63	✓	-
dn315 × 90	✓	-
dn315 × 110	✓	-
dn400 × 250	✓	-

Electrofusion Saddle End Plugdn63–dn315 · 7 sizes

Electrofusion Saddle End Plug - dn63–dn315 · 7 sizes
Size	SDR11	SDR17
dn63	✓	-
dn90	✓	-
dn110	✓	-
dn160	✓	-
dn200	✓	-
dn250	✓	-
dn315	✓	-

Electrofusion Flange Adaptordn110–dn400 · 7 sizes

Electrofusion Flange Adaptor - dn110–dn400 · 7 sizes
Size	SDR11	SDR17
dn110	✓	-
dn125	✓	-
dn160	✓	-
dn200	✓	-
dn250	✓	-
dn315	✓	-
dn400	✓	-

Electrofusion Reducing Teedn25–dn400 · 56 combinations

Electrofusion Reducing Tee - dn25–dn400 · 56 combinations
Size	SDR11	SDR17	Size	SDR11	SDR17
dn25 × 20 × 25	✓	-	dn125 × 90 × 125	✓	-
dn32 × 20 × 32	✓	-	dn160 × 50 × 160	✓	-
dn32 × 25 × 32	✓	-	dn160 × 63 × 160	✓	-
dn40 × 20 × 40	✓	-	dn160 × 75 × 160	✓	-
dn40 × 25 × 40	✓	-	dn160 × 90 × 160	✓	-
dn40 × 32 × 40	✓	-	dn160 × 110 × 160	✓	-
dn50 × 25 × 50	✓	-	dn200 × 63 × 200	✓	-
dn50 × 32 × 50	✓	-	dn200 × 75 × 200	✓	-
dn50 × 40 × 50	✓	-	dn200 × 90 × 200	✓	-
dn63 × 25 × 63	✓	-	dn200 × 110 × 200	✓	-
dn63 × 32 × 63	✓	-	dn200 × 160 × 200	✓	-
dn63 × 40 × 63	✓	-	dn225 × 110 × 225	✓	-
dn63 × 50 × 63	✓	-	dn225 × 160 × 225	✓	-
dn75 × 32 × 75	✓	-	dn225 × 200 × 225	✓	-
dn75 × 40 × 75	✓	-	dn250 × 90 × 250	✓	-
dn75 × 50 × 75	✓	-	dn250 × 110 × 250	✓	-
dn75 × 63 × 75	✓	-	dn250 × 160 × 250	✓	-
dn90 × 32 × 90	✓	-	dn250 × 200 × 250	✓	-
dn90 × 40 × 90	✓	-	dn315 × 110 × 315	✓	-
dn90 × 50 × 90	✓	-	dn315 × 160 × 315	✓	-
dn90 × 63 × 90	✓	-	dn315 × 200 × 315	✓	-
dn90 × 75 × 90	✓	-	dn315 × 250 × 315	✓	-
dn110 × 32 × 110	✓	-	dn355 × 200 × 355	✓	-
dn110 × 40 × 110	✓	-	dn355 × 250 × 355	✓	-
dn110 × 50 × 110	✓	-	dn355 × 315 × 355	✓	-
dn110 × 63 × 110	✓	-	dn400 × 200 × 400	✓	-
dn110 × 75 × 110	✓	-	dn400 × 250 × 400	✓	-
dn110 × 90 × 110	✓	-	dn400 × 315 × 400	✓	-

Electrofusion End Capdn50–dn315 · 10 sizes

Electrofusion End Cap - dn50–dn315 · 10 sizes
Size	SDR11	SDR17
dn50	✓	-
dn63	✓	-
dn75	✓	-
dn90	✓	-
dn110	✓	-
dn160	✓	-
dn200	✓	-
dn225	✓	-
dn250	✓	-
dn315	✓	-

Electrofusion 90° Elbowdn25–dn400 · 16 sizes

Electrofusion 90° Elbow - dn25–dn400 · 16 sizes
Size	SDR11	SDR17	Size	SDR11	SDR17
dn25	✓	-	dn125	✓	-
dn32	✓	-	dn160	✓	-
dn40	✓	-	dn200	✓	-
dn50	✓	-	dn225	✓	-
dn63	✓	-	dn250	✓	-
dn75	✓	-	dn315	✓	-
dn90	✓	-	dn355	✓	-
dn110	✓	-	dn400	✓	-

Electrofusion 45° Elbowdn25–dn400 · 16 sizes

Electrofusion 45° Elbow - dn25–dn400 · 16 sizes
Size	SDR11	SDR17	Size	SDR11	SDR17
dn25	✓	-	dn125	✓	-
dn32	✓	-	dn160	✓	-
dn40	✓	-	dn200	✓	-
dn50	✓	-	dn225	✓	-
dn63	✓	-	dn250	✓	-
dn75	✓	-	dn315	✓	-
dn90	✓	-	dn355	✓	-
dn110	✓	-	dn400	✓	-

Electrofusion Saddle Bypassdn63–dn315 · 13 combinations

Electrofusion Saddle Bypass - dn63–dn315 · 13 combinations
Size	SDR11	SDR17
dn63 × 32	✓	-
dn90 × 50	✓	-
dn90 × 63	✓	-
dn110 × 63	✓	-
dn160 × 63	✓	-
dn200 × 63	✓	-
dn200 × 90	✓	-
dn250 × 63	✓	-
dn250 × 90	✓	-
dn250 × 110	✓	-
dn315 × 63	✓	-
dn315 × 90	✓	-
dn315 × 110	✓	-

Electrofusion Equal Teedn25–dn400 · 16 sizes

Electrofusion Equal Tee - dn25–dn400 · 16 sizes
Size	SDR11	SDR17	Size	SDR11	SDR17
dn25	✓	-	dn125	✓	-
dn32	✓	-	dn160	✓	-
dn40	✓	-	dn200	✓	-
dn50	✓	-	dn225	✓	-
dn63	✓	-	dn250	✓	-
dn75	✓	-	dn315	✓	-
dn90	✓	-	dn355	✓	✓
dn110	✓	-	dn400	✓	✓

V. Gas Distribution Series - Butt Fusion Fittings & Ball Valves

Butt Fusion Reducerdn75–dn400 · 55 combinations

Butt Fusion Reducer - dn75–dn400 · 55 combinations
Size	SDR11	SDR17	Size	SDR11	SDR17
dn75 × 32	✓	-	dn200 × 75	✓	✓
dn75 × 40	✓	-	dn200 × 90	✓	✓
dn75 × 50	✓	-	dn200 × 110	✓	✓
dn75 × 63	✓	-	dn200 × 125	✓	✓
dn90 × 32	✓	✓	dn200 × 160	✓	✓
dn90 × 40	✓	✓	dn200 × 180	✓	✓
dn90 × 50	✓	✓	dn225 × 110	✓	✓
dn90 × 63	✓	✓	dn225 × 125	✓	✓
dn90 × 75	✓	✓	dn225 × 160	✓	✓
dn110 × 40	✓	✓	dn225 × 200	✓	✓
dn110 × 50	✓	✓	dn250 × 110	✓	✓
dn110 × 63	✓	✓	dn250 × 125	✓	✓
dn110 × 75	✓	✓	dn250 × 160	✓	✓
dn110 × 90	✓	✓	dn250 × 200	✓	✓
dn125 × 63	✓	✓	dn250 × 225	✓	✓
dn125 × 75	✓	✓	dn315 × 160	✓	✓
dn125 × 90	✓	✓	dn315 × 200	✓	✓
dn125 × 110	✓	✓	dn315 × 225	✓	✓
dn140 × 110	✓	✓	dn315 × 250	✓	✓
dn160 × 50	✓	✓	dn315 × 280	✓	✓
dn160 × 63	✓	✓	dn355 × 250	✓	✓
dn160 × 75	✓	✓	dn355 × 315	✓	✓
dn160 × 90	✓	✓	dn400 × 160	✓	✓
dn160 × 110	✓	✓	dn400 × 200	✓	✓
dn160 × 125	✓	✓	dn400 × 250	✓	✓
dn160 × 140	✓	✓	dn400 × 315	✓	✓
dn180 × 160	✓	✓	dn400 × 355	✓	✓
dn200 × 63	✓	✓

Butt Fusion 45° Elbowdn75–dn400 · 12 sizes

Butt Fusion 45° Elbow - dn75–dn400 · 12 sizes
Size	SDR11	SDR17
dn75	✓	-
dn90	✓	✓
dn110	✓	✓
dn125	✓	✓
dn160	✓	✓
dn200	✓	✓
dn225	✓	✓
dn250	✓	✓
dn280	✓	✓
dn315	✓	✓
dn355	✓	✓
dn400	✓	✓

Butt Fusion Reducing Teedn75–dn400 · 64 combinations

Butt Fusion Reducing Tee - dn75–dn400 · 64 combinations
Size	SDR11	SDR17	Size	SDR11	SDR17
dn75 × 32 × 75	✓	-	dn200 × 63 × 200	✓	✓
dn75 × 40 × 75	✓	-	dn200 × 75 × 200	✓	✓
dn75 × 50 × 75	✓	-	dn200 × 90 × 200	✓	✓
dn75 × 63 × 75	✓	-	dn200 × 110 × 200	✓	✓
dn90 × 32 × 90	✓	✓	dn200 × 125 × 200	✓	✓
dn90 × 40 × 90	✓	✓	dn200 × 160 × 200	✓	✓
dn90 × 50 × 90	✓	✓	dn225 × 90 × 225	✓	✓
dn90 × 63 × 90	✓	✓	dn225 × 110 × 225	✓	✓
dn90 × 75 × 90	✓	✓	dn225 × 160 × 225	✓	✓
dn110 × 32 × 110	✓	✓	dn225 × 200 × 225	✓	✓
dn110 × 40 × 110	✓	✓	dn250 × 90 × 250	✓	✓
dn110 × 50 × 110	✓	✓	dn250 × 110 × 250	✓	✓
dn110 × 63 × 110	✓	✓	dn250 × 125 × 250	✓	✓
dn110 × 75 × 110	✓	✓	dn250 × 160 × 250	✓	✓
dn110 × 90 × 110	✓	✓	dn250 × 200 × 250	✓	✓
dn125 × 63 × 125	✓	✓	dn250 × 225 × 250	✓	✓
dn125 × 75 × 125	✓	✓	dn280 × 110 × 280	✓	✓
dn125 × 90 × 125	✓	✓	dn280 × 160 × 280	✓	✓
dn125 × 110 × 125	✓	✓	dn280 × 200 × 280	✓	✓
dn140 × 110 × 140	✓	✓	dn280 × 225 × 280	✓	✓
dn160 × 32 × 160	✓	✓	dn315 × 110 × 315	✓	✓
dn160 × 40 × 160	✓	✓	dn315 × 160 × 315	✓	✓
dn160 × 50 × 160	✓	✓	dn315 × 200 × 315	✓	✓
dn160 × 63 × 160	✓	✓	dn315 × 225 × 315	✓	✓
dn160 × 75 × 160	✓	✓	dn315 × 250 × 315	✓	✓
dn160 × 90 × 160	✓	✓	dn355 × 160 × 355	✓	✓
dn160 × 110 × 160	✓	✓	dn355 × 200 × 355	✓	✓
dn160 × 125 × 160	✓	✓	dn400 × 110 × 400	✓	✓
dn180 × 110 × 180	✓	✓	dn400 × 160 × 400	✓	✓
dn180 × 160 × 180	✓	✓	dn400 × 200 × 400	✓	✓
dn200 × 40 × 200	✓	✓	dn400 × 250 × 400	✓	✓
dn200 × 50 × 200	✓	✓	dn400 × 315 × 400	✓	✓

Butt Fusion 90° Elbowdn75–dn400 · 14 sizes

Butt Fusion 90° Elbow - dn75–dn400 · 14 sizes
Size	SDR11	SDR17
dn75	✓	✓
dn90	✓	✓
dn110	✓	✓
dn125	✓	✓
dn140	✓	✓
dn160	✓	✓
dn180	✓	✓
dn200	✓	✓
dn225	✓	✓
dn250	✓	✓
dn280	✓	✓
dn315	✓	✓
dn355	✓	✓
dn400	✓	✓

Butt Fusion Stub Enddn40–dn630 · 18 sizes

Butt Fusion Stub End - dn40–dn630 · 18 sizes
Size	SDR11	SDR17	Size	SDR11	SDR17
dn40	✓	-	dn225	✓	✓
dn50	✓	-	dn250	✓	✓
dn63	✓	-	dn315	✓	✓
dn75	✓	✓	dn355	✓	✓
dn90	✓	✓	dn400	✓	✓
dn110	✓	✓	dn450	✓	✓
dn125	✓	✓	dn500	✓	✓
dn160	✓	✓	dn560	✓	✓
dn200	✓	✓	dn630	✓	✓

Butt Fusion End Capdn20–dn630 · 24 sizes

Butt Fusion End Cap - dn20–dn630 · 24 sizes
Size	SDR11	SDR17	Size	SDR11	SDR17
dn20	✓	-	dn180	✓	✓
dn25	✓	-	dn200	✓	✓
dn32	✓	-	dn225	✓	✓
dn40	✓	-	dn250	✓	✓
dn50	✓	-	dn280	✓	✓
dn63	✓	-	dn315	✓	✓
dn75	✓	-	dn355	✓	✓
dn90	✓	✓	dn400	✓	✓
dn110	✓	✓	dn450	✓	✓
dn125	✓	✓	dn500	✓	✓
dn140	✓	✓	dn560	✓	✓
dn160	✓	✓	dn630	✓	✓

Condensate Trap (no return branch)dn63–dn400 · 11 sizes

Condensate Trap (no return branch) - dn63–dn400 · 11 sizes
Size	SDR11	SDR17
dn63	✓	-
dn75	✓	-
dn90	✓	-
dn110	✓	-
dn160	✓	-
dn200	✓	-
dn225	✓	-
dn250	✓	-
dn315	✓	-
dn355	✓	-
dn400	✓	-

Butt Fusion Crossdn63–dn90 · 3 sizes

Butt Fusion Cross - dn63–dn90 · 3 sizes
Size	SDR11	SDR17
dn63	✓	-
dn75	✓	-
dn90	✓	-

Butt Fusion Equal Teedn50–dn630 · 24 combinations

Butt Fusion Equal Tee - dn50–dn630 · 24 combinations
Size	SDR11	SDR17	Size	SDR11	SDR17
dn50 × 50 × 50	✓	-	dn280 × 280 × 280	✓	✓
dn63 × 63 × 63	✓	-	dn315 × 315 × 315	✓	✓
dn75 × 75 × 75	✓	-	dn355 × 355 × 355	✓	✓
dn90 × 90 × 90	✓	✓	dn400 × 400 × 400	✓	✓
dn110 × 110 × 110	✓	✓	dn450 × 450 × 450	✓	✓
dn125 × 125 × 125	✓	✓	dn500 × 500 × 500	✓	✓
dn140 × 140 × 140	✓	✓	dn560 × 560 × 560	✓	✓
dn160 × 160 × 160	✓	✓	dn630 × 630 × 630	✓	✓
dn180 × 180 × 180	✓	✓	dn450 × 450 × 450 (long pattern)	-	✓
dn200 × 200 × 200	✓	✓	dn500 × 500 × 500 (long pattern)	-	✓
dn225 × 225 × 225	✓	✓	dn560 × 560 × 560 (long pattern)	-	✓
dn250 × 250 × 250	✓	✓	dn630 × 630 × 630 (long pattern)	-	✓

Standard Ball ValveØ32–Ø355 · 11 sizes

Standard Ball Valve - Ø32–Ø355 · 11 sizes
Size	Standard	With Booster
Ø32	✓	-
Ø40	✓	-
Ø50	✓	-
Ø63	✓	-
Ø90	✓	-
Ø110	✓	-
Ø160	✓	-
Ø200	✓	-
Ø250	✓	-
Ø315	✓	-
Ø355	✓	-

Longer protective sleeve is available to order.

Ball Valve with Single VentØ63–Ø355 · 8 sizes

Ball Valve with Single Vent - Ø63–Ø355 · 8 sizes
Size	Standard	With Booster
Ø63	✓	-
Ø90	✓	-
Ø110	✓	-
Ø160	✓	✓
Ø200	✓	✓
Ø250	✓	✓
Ø315	-	✓
Ø355	-	✓

Longer protective sleeve is available to order.

Ball Valve with Double VentØ63–Ø355 · 8 sizes

Ball Valve with Double Vent - Ø63–Ø355 · 8 sizes
Size	Standard	With Booster
Ø63	✓	-
Ø90	✓	-
Ø110	✓	-
Ø160	✓	✓
Ø200	✓	✓
Ø250	✓	✓
Ø315	-	✓
Ø355	-	✓

Longer protective sleeve is available to order.

VI. Gas Distribution Series - Steel-to-PE Transition Fittings

Straight Steel-to-PE Transition, Plain Steel End, SDR11dn25–dn355 · 36 combinations

Straight Steel-to-PE Transition, Plain Steel End, SDR11 - dn25–dn355 · 36 combinations
Size	Standard Coating	3PE Coating	Size	Standard Coating	3PE Coating
dn25 / DN22	✓	✓	dn75 / DN76	✓	✓
dn25 / DN27	✓	✓	dn90 / DN76	✓	✓
dn32 / DN22	✓	✓	dn90 / DN89	✓	✓
dn32 / DN27	✓	✓	dn110 / DN89	✓	✓
dn32 / DN34	✓	✓	dn110 / DN108	✓	✓
dn40 / DN27	✓	✓	dn110 / DN114	✓	✓
dn40 / DN34	✓	✓	dn125 / DN133	✓	✓
dn40 / DN38	✓	✓	dn160 / DN159	✓	✓
dn40 / DN42	✓	✓	dn160 / DN168	✓	✓
dn40 / DN48	✓	✓	dn200 / DN219	✓	✓
dn50 / DN42	✓	✓	dn225 / DN219	✓	✓
dn50 / DN48	✓	✓	dn250 / DN219	✓	✓
dn63 / DN34	✓	✓	dn250 / DN273	✓	✓
dn63 / DN38	✓	✓	dn315 / DN273	✓	✓
dn63 / DN42	✓	✓	dn315 / DN299	✓	✓
dn63 / DN48	✓	✓	dn315 / DN325	✓	✓
dn63 / DN57	✓	✓	dn355 / DN325	✓	✓
dn63 / DN60	✓	✓	dn355 / DN377	✓	✓

Straight Steel-to-PE Transition, Plain Steel End, SDR17dn90–dn355 · 17 combinations

Straight Steel-to-PE Transition, Plain Steel End, SDR17 - dn90–dn355 · 17 combinations
Size	Standard Coating	3PE Coating	Size	Standard Coating	3PE Coating
dn90 / DN76	✓	✓	dn225 / DN219	✓	✓
dn90 / DN89	✓	✓	dn250 / DN219	✓	✓
dn110 / DN89	✓	✓	dn250 / DN273	✓	✓
dn110 / DN108	✓	✓	dn315 / DN273	✓	✓
dn110 / DN114	✓	✓	dn315 / DN299	✓	✓
dn125 / DN133	✓	✓	dn315 / DN325	✓	✓
dn160 / DN159	✓	✓	dn355 / DN325	✓	✓
dn160 / DN168	✓	✓	dn355 / DN377	✓	✓
dn200 / DN219	✓	✓

Bent Steel-to-PE Transition, Plain Steel End, Steel Length 1.1 m (0.3 + 0.8), SDR11dn25–dn63 · 16 combinations

Bent Steel-to-PE Transition, Plain Steel End, Steel Length 1.1 m (0.3 + 0.8), SDR11 - dn25–dn63 · 16 combinations
Size	Standard Coating	3PE Coating	Size	Standard Coating	3PE Coating
dn25 × 22	✓	✓	dn50 × 42	✓	✓
dn25 × 27	✓	✓	dn50 × 48	✓	✓
dn32 × 22	✓	✓	dn63 × 34	✓	✓
dn32 × 27	✓	✓	dn63 × 38	✓	✓
dn32 × 34	✓	✓	dn63 × 42	✓	✓
dn40 × 34	✓	✓	dn63 × 48	✓	✓
dn40 × 42	✓	✓	dn63 × 57	✓	✓
dn40 × 48	✓	✓	dn63 × 60	✓	✓

Bent Threaded Steel-to-PE Transition, Steel Length 1.1 m (0.3 + 0.8), SDR11dn25–dn63 · 14 combinations

Bent Threaded Steel-to-PE Transition, Steel Length 1.1 m (0.3 + 0.8), SDR11 - dn25–dn63 · 14 combinations
Size	Standard Coating	3PE Coating
dn25 × 22	✓	✓
dn25 × 27	✓	✓
dn32 × 22	✓	✓
dn32 × 27	✓	✓
dn32 × 34	✓	✓
dn40 × 34	✓	✓
dn40 × 42	✓	✓
dn40 × 48	✓	✓
dn50 × 42	✓	✓
dn50 × 48	✓	✓
dn63 × 34	✓	✓
dn63 × 42	✓	✓
dn63 × 48	✓	✓
dn63 × 60	✓	✓

Bent Steel-to-PE Transition, Plain Steel End, Steel Length 1.5 m (0.3 + 1.2), SDR11dn25–dn63 · 19 combinations

Bent Steel-to-PE Transition, Plain Steel End, Steel Length 1.5 m (0.3 + 1.2), SDR11 - dn25–dn63 · 19 combinations
Size	Standard Coating	3PE Coating	Size	Standard Coating	3PE Coating
dn25 × 22	✓	✓	dn40 × 48	✓	✓
dn25 × 27	✓	✓	dn50 × 42	✓	✓
dn32 × 22	✓	✓	dn50 × 48	✓	✓
dn32 × 27	✓	✓	dn63 × 34	✓	✓
dn32 × 32	✓	✓	dn63 × 38	✓	✓
dn32 × 34	✓	✓	dn63 × 42	✓	✓
dn40 × 32	✓	✓	dn63 × 48	✓	✓
dn40 × 34	✓	✓	dn63 × 57	✓	✓
dn40 × 38	✓	✓	dn63 × 60	✓	✓
dn40 × 42	✓	✓

Bent Threaded Steel-to-PE Transition, Steel Length 1.5 m (0.3 + 1.2), SDR11dn25–dn63 · 14 combinations

Bent Threaded Steel-to-PE Transition, Steel Length 1.5 m (0.3 + 1.2), SDR11 - dn25–dn63 · 14 combinations
Size	Standard Coating	3PE Coating
dn25 × 22	✓	✓
dn25 × 27	✓	✓
dn32 × 22	✓	✓
dn32 × 27	✓	✓
dn32 × 34	✓	✓
dn40 × 34	✓	✓
dn40 × 42	✓	✓
dn40 × 48	✓	✓
dn50 × 42	✓	✓
dn50 × 48	✓	✓
dn63 × 34	✓	✓
dn63 × 42	✓	✓
dn63 × 48	✓	✓
dn63 × 60	✓	✓

* Machined from the next larger size of butt-fusion fitting. # New size under development - please confirm lead time with our sales team. ✓ configuration offered. - not listed for that size - please confirm with our sales team. dn = PE outside diameter, DN = steel nominal diameter. Ø = outside diameter of PE ball valves. All dimensions in mm. Other sizes and SDR classes available on request.

product specs
